The AC high voltage sulfur hexafluoride ring network switchgear in HXGN15-12 is a complete set of distribution equipment for 12kv three-phase AC 50Hz power supply system. It uses sulfur hexafluoride load switch as the main switch and the whole cabinet adopts air insulation, which is suitable for distribution automation. Compact and extensible complete set of distribution devices. It can be widely used in the construction of urban power grid, and can be applied to the distribution system of industrial and mining enterprises, high-rise buildings, residential areas, hospitals, schools, parks and so on, for the purpose of receiving and distributing electric energy. Mainly used for ring power supply and terminal power supply, but also suitable for loading pre-installed substation.
Environmental use:
1. Ambient temperature: the maximum temperature is not greater than + 40C, the lowest is not less than -15C, the daily average value is not greater than + 35C.2, the environmental humidity is less than 95% of the daily average relative humidity, and the monthly average relative humidity is 90% or less. 3. Altitude: the maximum altitude of the installation site is not more than 1000m. 4. Earthquake intensity: no more than 8 degrees.
5. The equipment shall be installed in a place free from fire, explosion, serious contamination, chemical corrosion and severe vibration.
User and manufacturer negotiate.

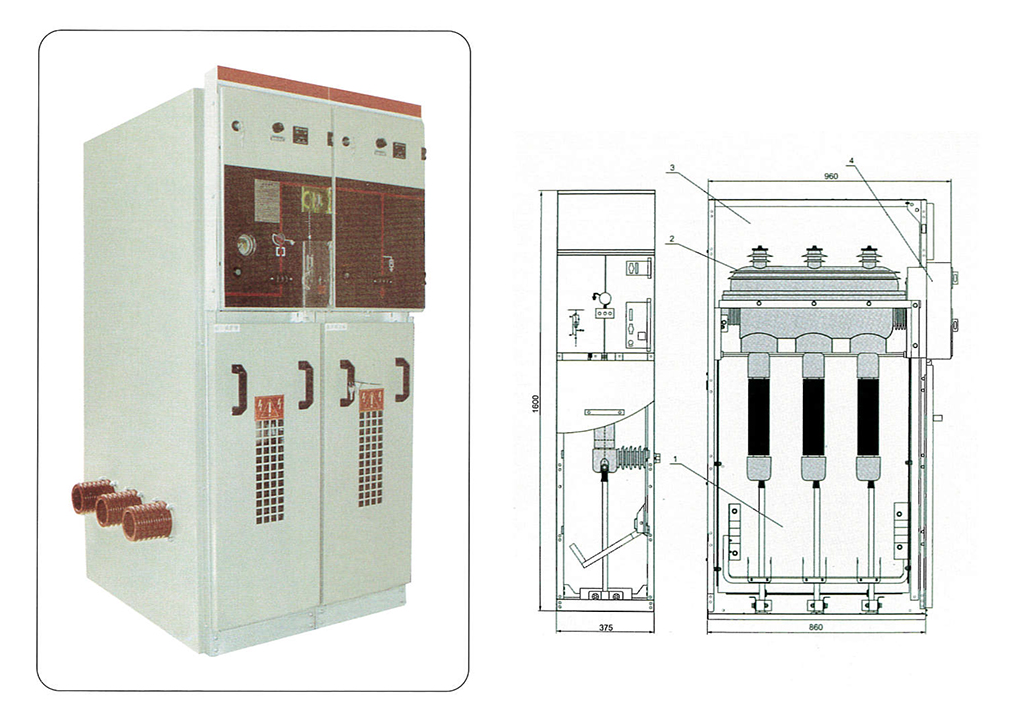

Schematic diagram of ring network structure:
1. Cable room 2, switch room 3, busbar room 4, low voltage room 4
Cause 1e
Meaning sound and meaning
Li
175 B
